Why Use YANMI for Sheet Metal Fabrication
YANMI takes the stress out of manufacturing by guaranteeing the quality and consistency of every part. Each order is dimensionally and visually inspected to make sure it meets the YANMI Standard.
Instant Quoting & DfM Feedback
Review your parts for manufacturability and assess the cost of different materials, processes and lead times for your project in real-time.
Quality & reliability
Dedicated YANMI team to ensure your parts consistently meet your quality expectations. We also offer phone, email and chat support for any concerns or questions you may have.
What is Sheet Metal Fabrication?
Sheet metal fabrication is a subtractive manufacturing process that forms parts from thin metal sheets. Engineers often choose sheet metal parts for their high precision and durability, especially for end-use applications like chassis, enclosures, and brackets.
YANMI’s online sheet metal fabrication services provide a fast and cost-effective solution for any parts that need to be made from 3D CAD files or engineering drawings. YANMI offers a range of sheet metal materials, including aluminum, copper, steel, and stainless steel, as well as assembly services like installing PEM inserts, welding, and finishing services.
Available Materials for Sheet Metal
Below is a list of our standard available metals for sheet metal fabrication. If you require custom material please contact yanyan@yanmisz.com
Aluminum | Stainless steel | Mild steel | Copper |
|---|---|---|---|
SGCC | |||
SPHC | |||
A6061 | SUS304 | SECC | C1020 |
A6063 | S45C | C1100 | |
SPCC |
Available Sheet Metal Fabrication Processes
Name | Description | Allowable sheet thickness |
|---|---|---|
Laser cutting | This manufacturing process uses
a high-power laser beam to cut a material sheet. | 1-6mm (depending on material) |
Bending | This manufacturing process uses dies to produce a U-shape,
V- shape or channel shape along
a straight axis in ductile materials. | 1-6mm (depending on material) |
Tolerances for Sheet Metal Fabrication
Feature | Tolerance |
|---|---|
Cutting feature | ± 0.2 mm (0.00787") |
Bend angle | ± 1.0° |
Bend to edge | ± 0.254mm (0.010”) |
* We can source any other material on request, but quotes take up to 48 hours.
Available surface finishes for sheet metal
Surface finishes are applied after machining and can change the appearance, surface roughness, hardness and chemical resistance of the produced parts.
Standard
This is our standard finish. Parts as delivered as cut and bent, no additional treatment applied. Sharp edges are broken and deburred for safe handling.
Bead Blasted
Parts are bead blasted with glass beads which results in a grainy texture. Sharp edges are broken and deburred for safe handling.

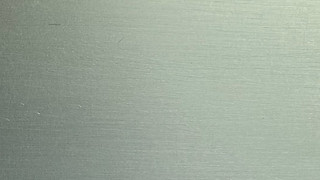

Brushed
Parts are manually brushed with grit #180 after cutting and bending. Sharp edges are broken and deburred for safe handling. Ideal to reduce the surface roughness of a part.
Brused + Anodized type II
Parts are dipped in an anodizing bath (type II) after manual brushing. Ideal for increasing the corrosion resistance of the part. Ideal for increasing the corrosion resistance of the part. Sharp edges are broken and deburred for safe handling.

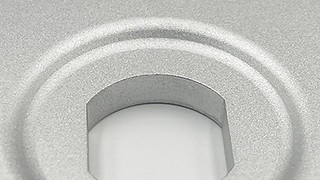

Bead blasted + Anodized type II
Parts are dipped in an anodizing bath (type II) after bead blasting. Ideal for increasing the corrosion resistance of the part. Sharp edges are broken and deburred for safe handling.
Anodized type III (Hardcoat)
Parts dipped in an anodizing (type III) bath directly after fabrication. Ideal to improve corrosion and wear resistance of components. Sharp edges are broken and deburred for safe handling.
Powder coated
Powder coating layer is applied directly after fabrication. Sharp edges are broken and deburred for safe handling.
.jpg)
Black oxide
Parts are dipped in a black oxide bath after fabrication. Ideal to improve improve corrosion resistance and minimize light reflection in steel components. Sharp edges are broken and deburred for safe handling.
Chromate conversion coating
Parts are dipped in an alodine bath directly after fabrication. Ideal to increase the corrosion resistance of the part while maintaining its conductive properties. RoHS compliant. Sharp edges are broken and deburred for safe handling.
Gallery of Sheet Metal
We machine rapid prototypes and low-volume production orders for customers in multiple industries: automotive, electronics, hardware startups, industrial automation, machinery and manufacturing.
